Sauna Wiring in Victoria, BC
Grifflyn Electrichandles sauna wiring in Victoria for homeowners adding indoor or outdoor saunas, both traditional electric heater and infrared. A sauna heater is one of the heaviest continuous loads in a home, so it needs its own dedicated, properly sized, GFCI-protected circuit installed by a licensed electrician. We are a fully licensed Victoria, BC electrical contractor (TSBC Licence #LEL0209496) and we size the circuit to your exact heater spec so it runs safely at full output. Call (778) 350-2677 to book.
Technically reviewed by Carl Simard, Red Seal Certified Construction Electrician (SkilledTradesBC Certificate of Qualification No. 00316-EW-26), and Behn Larsen, FSR Class B (Certificate # CEL000220404).
Last updated: July 31, 2026
When you need a dedicated sauna circuit
Most electric sauna heaters cannot run off an existing general-purpose circuit. You need a new dedicated circuit when:
You are installing a new electric sauna heater, which commonly draws 30 to 60 amps at 240 volts
You are adding an infrared sauna that calls for its own circuit per the manufacturer
Your current circuit trips, the heater will not reach temperature, or wiring runs warm under load
There is no spare double-pole breaker space in your panel for a 240V circuit
You are putting the sauna outdoors or in a detached structure and need a weatherproof run and disconnect
The sauna is going in alongside other new loads and your service is already close to capacity
Why sauna wiring has to be done right
A sauna heater pulls a heavy load continuously for long stretches, which is harder on wiring than most household circuits. Getting it wrong is a fire and shock risk. The details that matter:
Heavy continuous load. A sauna heater can run at full draw for an hour or more at a time. The circuit and breaker have to be rated for sustained output, not just a brief peak.
GFCI protection. Sauna circuits require GFCI protection for shock safety in a hot, humid space. We install it correctly so it protects without nuisance tripping.
Correct wire sizing. Wire gauge is sized to the heater amperage and the run length so it does not overheat under sustained load. A 40A heater and a 60A heater are not the same wire.
Disconnect placement. The heater needs a properly located disconnect so it can be safely isolated for service.
Matching the heater spec. We size everything to your specific heater's voltage and amperage. Coordinating the spec up front avoids a circuit that is undersized or oversized.
Moisture and outdoor considerations. Outdoor saunas and detached structures need weatherproof methods, proper conduit, and the right rating for a wet location.
In Victoria we are seeing saunas added as part of broader home electrification. A sauna stacked on top of a heat pump, an EV charger, and a hot tub is a common reason a panel runs out of room or a home needs a service upgrade. We look at the whole picture before quoting, not just the sauna circuit in isolation.
How we wire your sauna
We review your heater spec sheet and confirm the voltage and amperage so the circuit matches the unit exactly.
We perform a load calculation on your existing service to confirm there is capacity, or flag whether a panel replacement or service upgrade is needed first.
We pull the electrical permit for the work.
We run the correctly sized, GFCI-protected circuit, set the breaker, and place the disconnect, using weatherproof methods for outdoor installs.
We test the circuit under load and arrange the final inspection.
What sauna wiring costs in Victoria
Sauna circuit installation starts from $2,183 + GST for a 40A circuit run under 100 feet. The final figure depends on your heater's amperage (commonly 30 to 60A), the length of the run, available panel capacity, and whether the sauna is indoor or outdoor. We provide a firm written quote after an on-site assessment.
Outdoor sauna circuit, Saanich: 100A subpanel feed for a 9kW Homecraft heater
A Saanich homeowner off Santa Clara Ave had just had an outdoor Homecraft sauna installed and called us to bring power to it. The heater was a 9kW traditional electric unit (model HSH 9KW with a TKE2-2 control) drawing 37.5 amps at 240 volts — a heavy continuous load that needed its own dedicated circuit.
The house had a newer Siemens panel, but every breaker position was occupied. Before touching anything we ran a load calculation on the existing service to confirm there was actual capacity for the sauna. There was. The problem was physical space, not capacity: there was nowhere to land a 2-pole breaker. We consolidated several existing 15A circuits onto tandem breakers to free up the two adjacent positions we needed.
Rather than run a single dedicated circuit and call it done, we fed a 100A outdoor subpanel from the main panel on a 2-pole 100A breaker. That gives the homeowner room to add outdoor loads later — landscape lighting, a hot tub, a shop, an EV charger — without opening up the main panel again. From the subpanel we ran #8 copper to the sauna on a 50A breaker, sized for the heater's 37.5A continuous draw at 125%.
Two complications. The cable run to the sauna required trenching across the yard to reach the structure. And getting the feeder into the main panel meant working in a wall cavity with very little room to move the conductor — the tightest part of the job, and the reason the install ran to two days.
The result: the sauna runs at full output on its own properly sized circuit, and the homeowner has a 100A outdoor subpanel sitting there ready for whatever they add next. Client was very happy with the install.
-

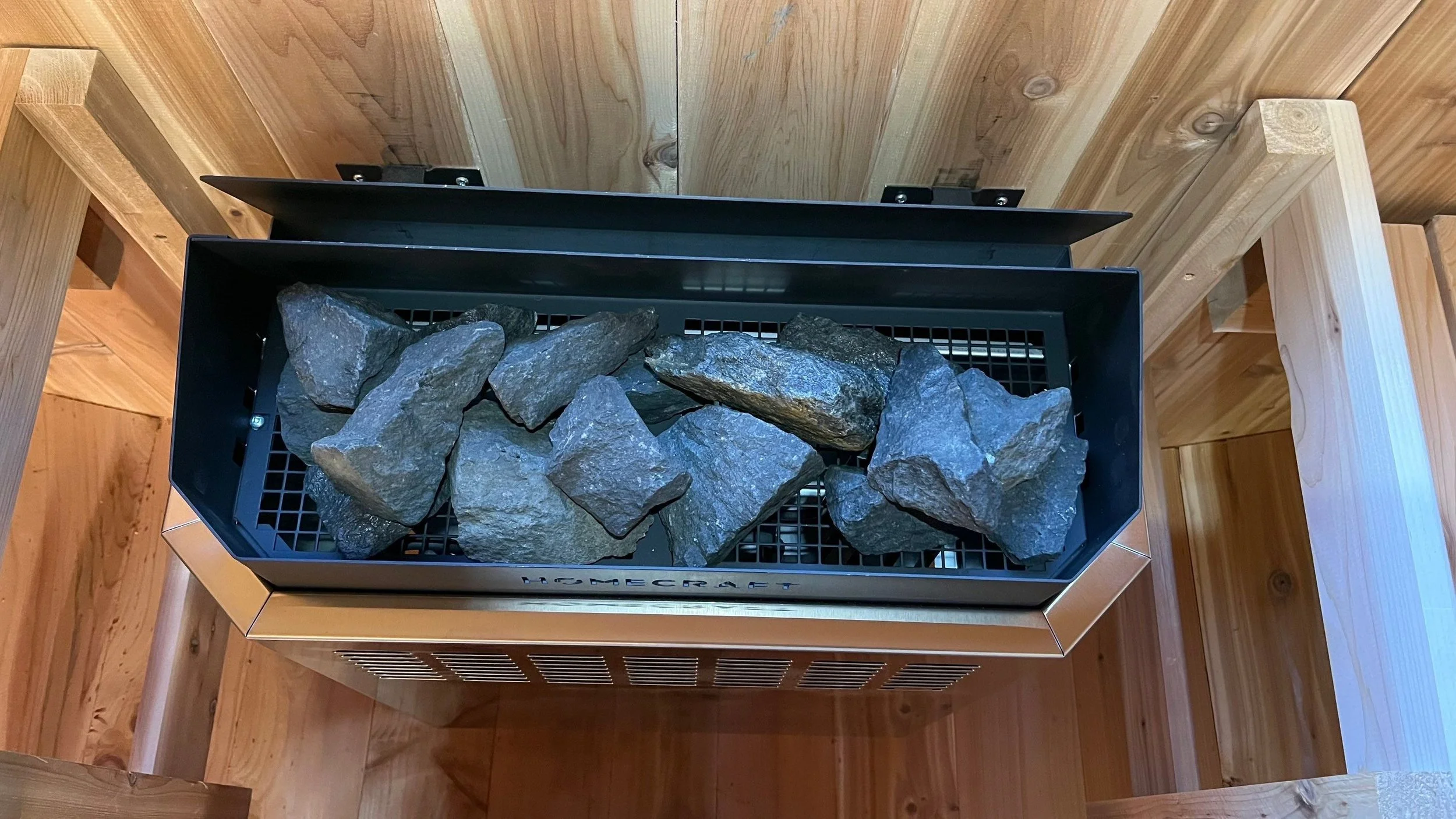

![Homecraft 9kW electric sauna heater with igneous sauna stones loaded in the basket, cedar interior]()
The Homecraft 9kW heater the circuit was sized for — 37.5 amps at 240 volts, held for the full length of a session.
-

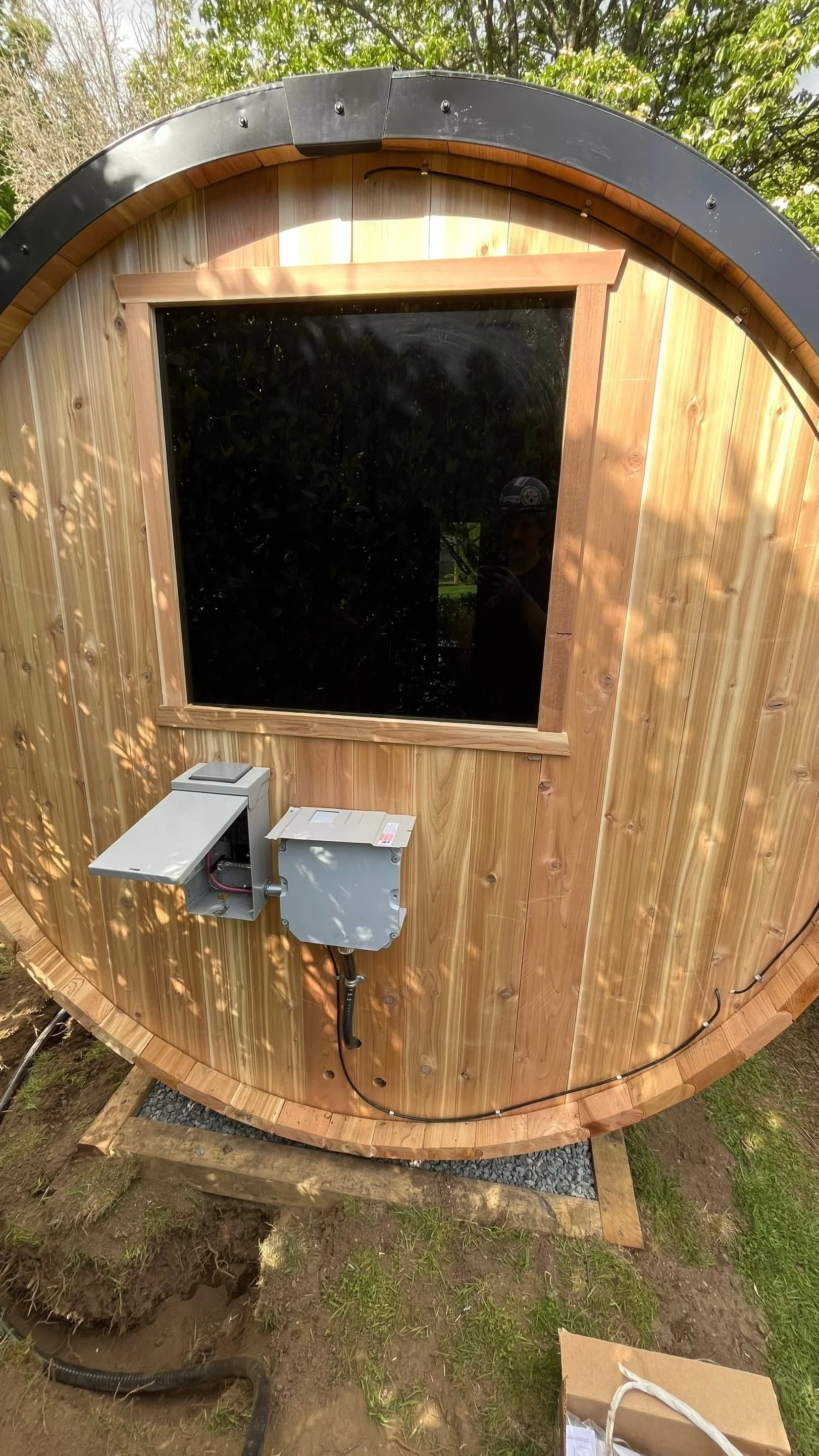

![Outdoor cedar barrel sauna with a weatherproof subpanel and disconnect mounted on the exterior wall]()

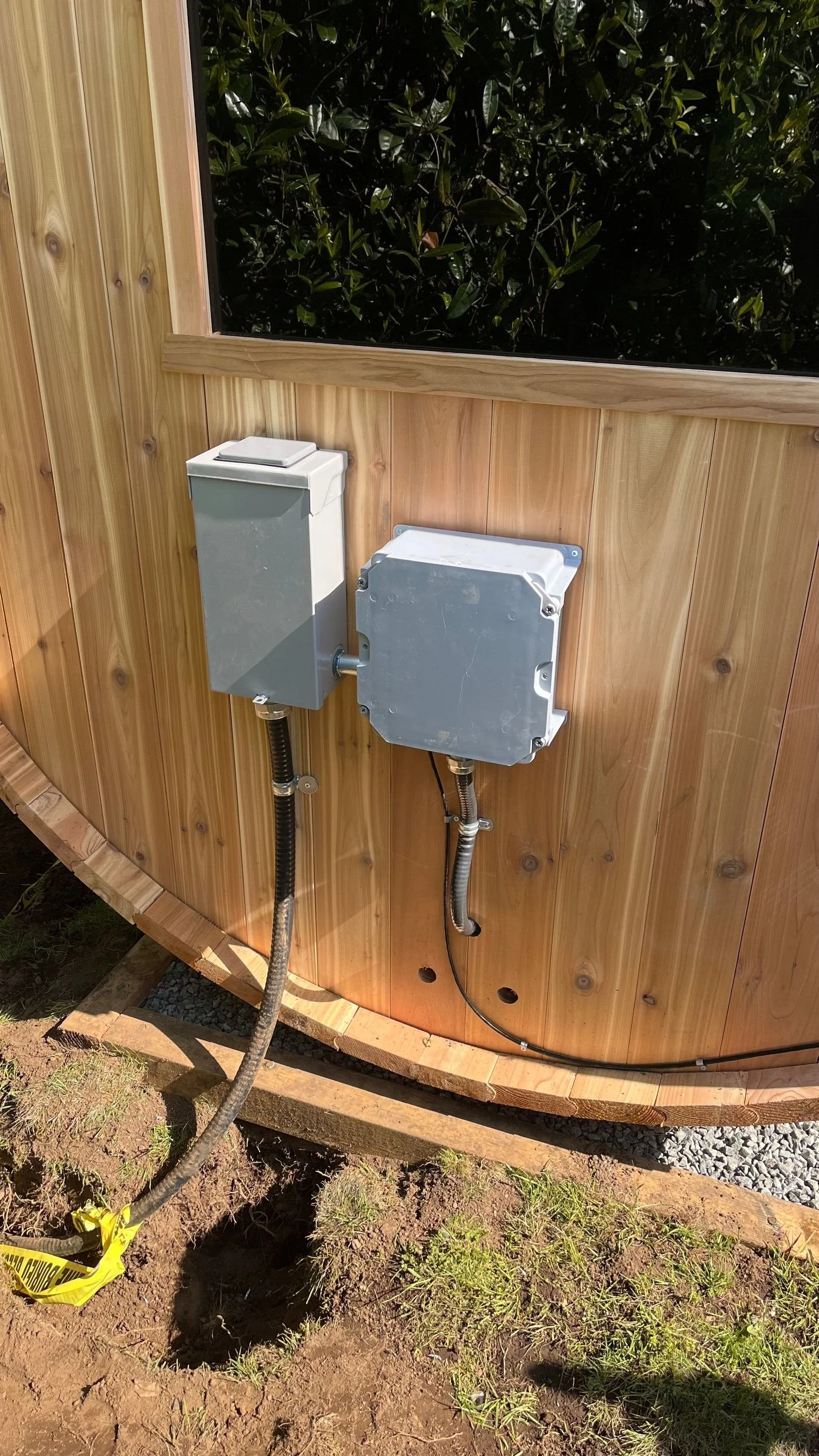

The finished exterior: 100A subpanel and disconnect mounted in weatherproof enclosures, sized to carry future outdoor loads beyond the sauna.
-

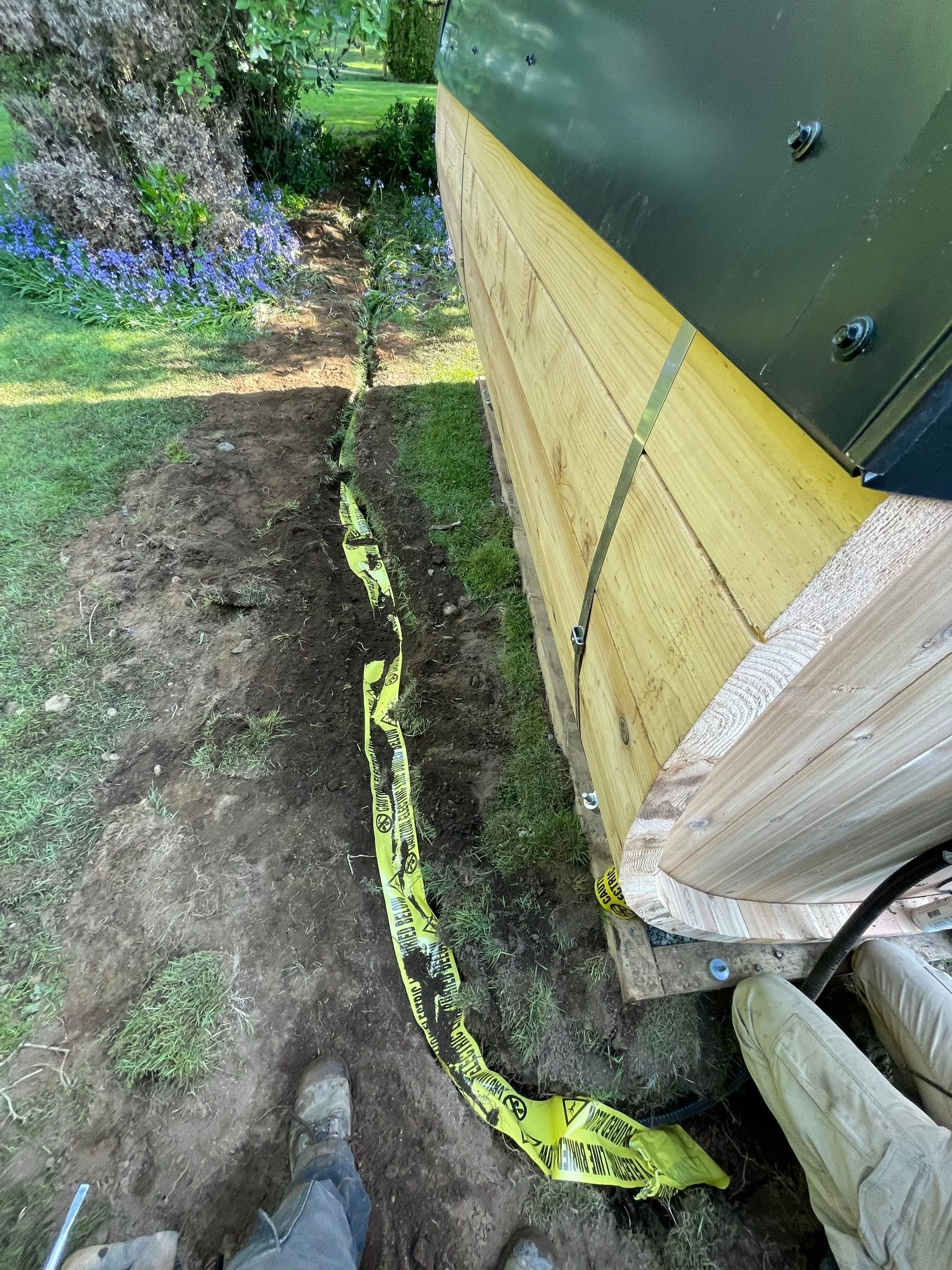

![Trench dug across a Saanich yard with buried electric line warning tape laid over the sauna feeder cable]()
We trenched from the house to the sauna and laid warning tape over the cable before backfilling, so anyone digging in the yard later knows there's a live feeder below.
-

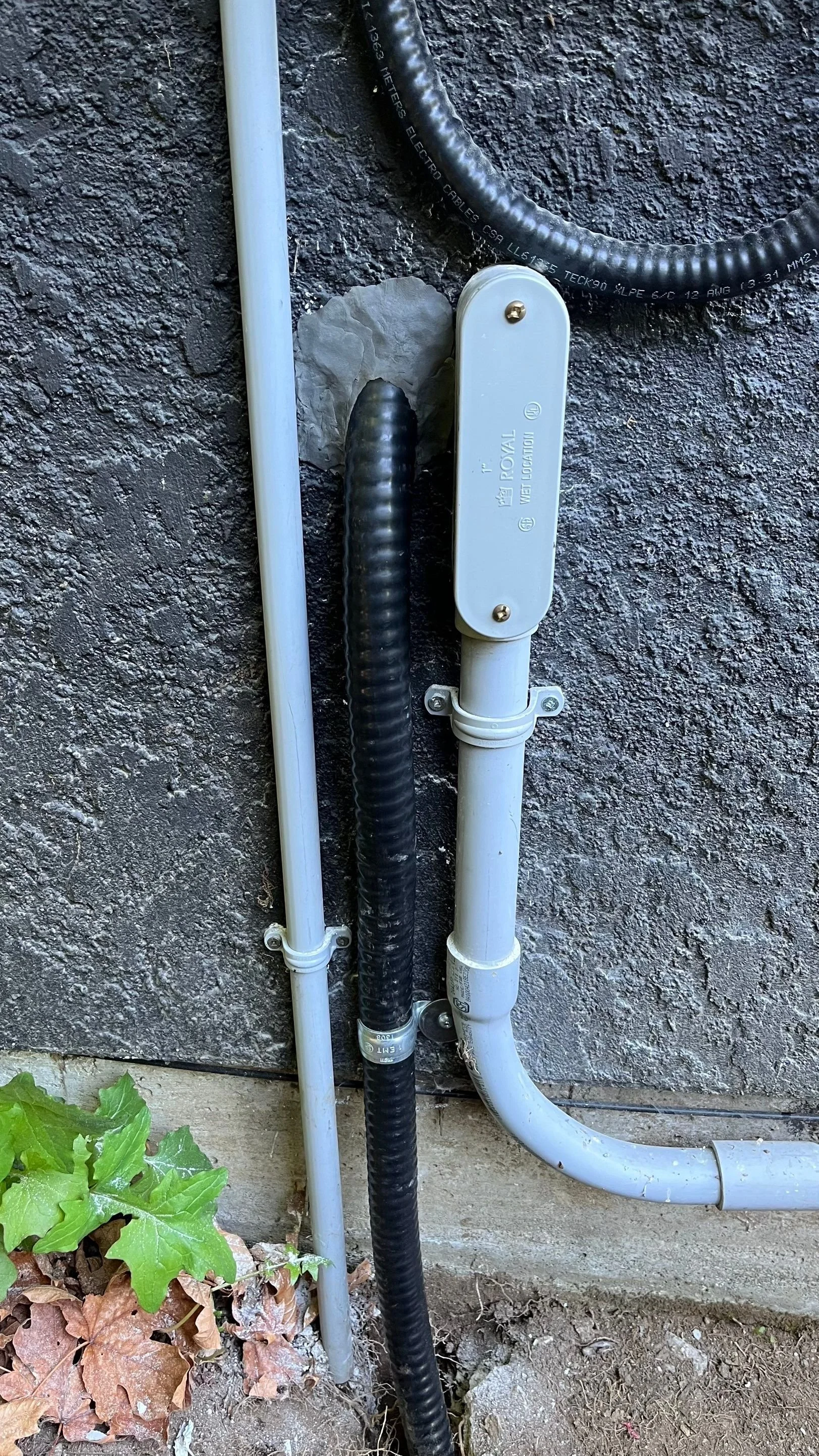

![Teck90 cable and EMT conduit with a wet-location conduit body where the sauna feeder exits the house wall]()
Where the run leaves the house — Teck90 cable and rigid conduit with a wet-location fitting, sealed at the wall penetration.
-
![modern vintage looking interior lights put in during the rennovation of the rosemead hotel in victoria]()

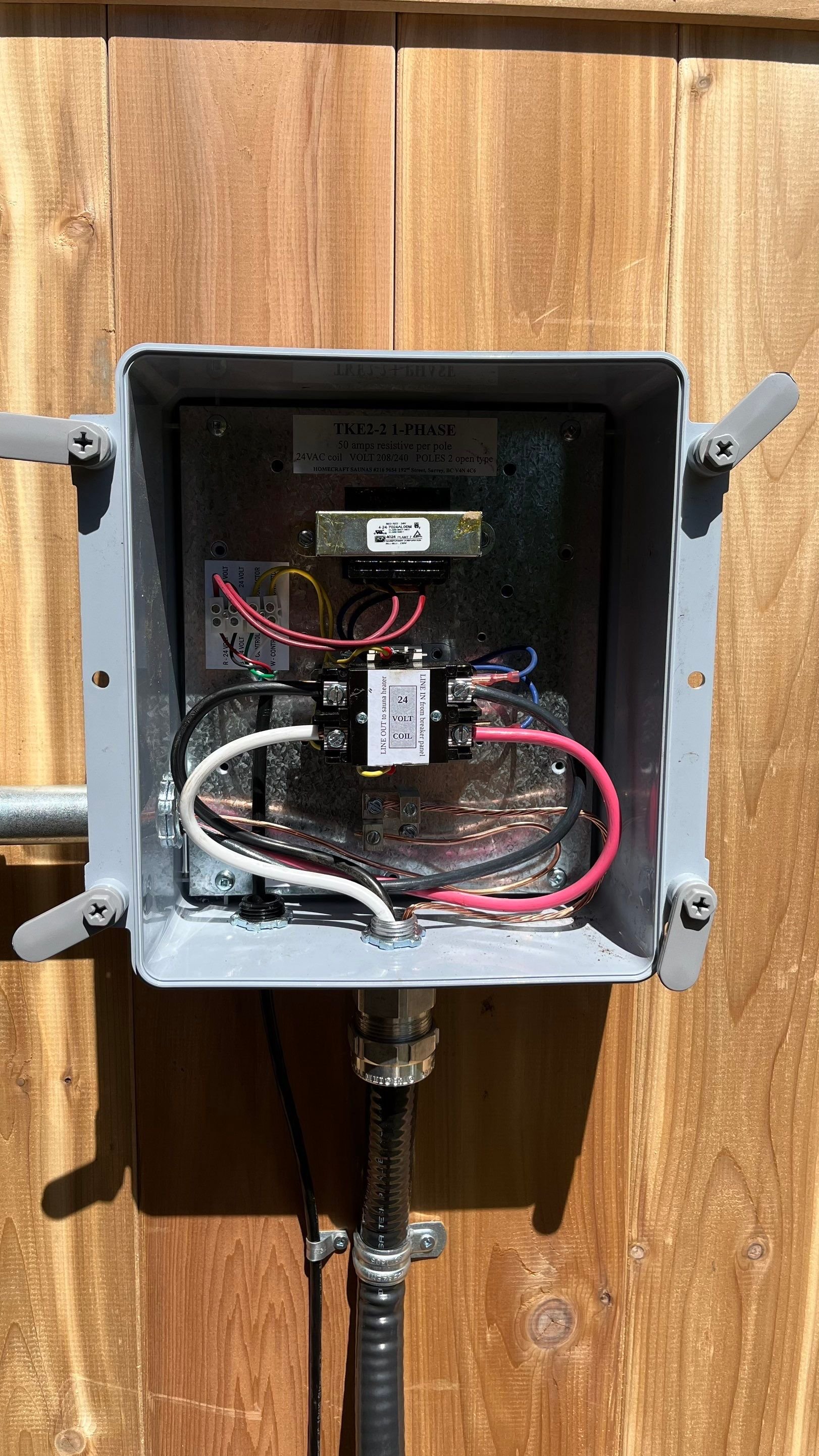

The Homecraft TKE2-2 contactor, rated 50 amps resistive per pole with a 24VAC coil, wired between the subpanel and the heater.
-

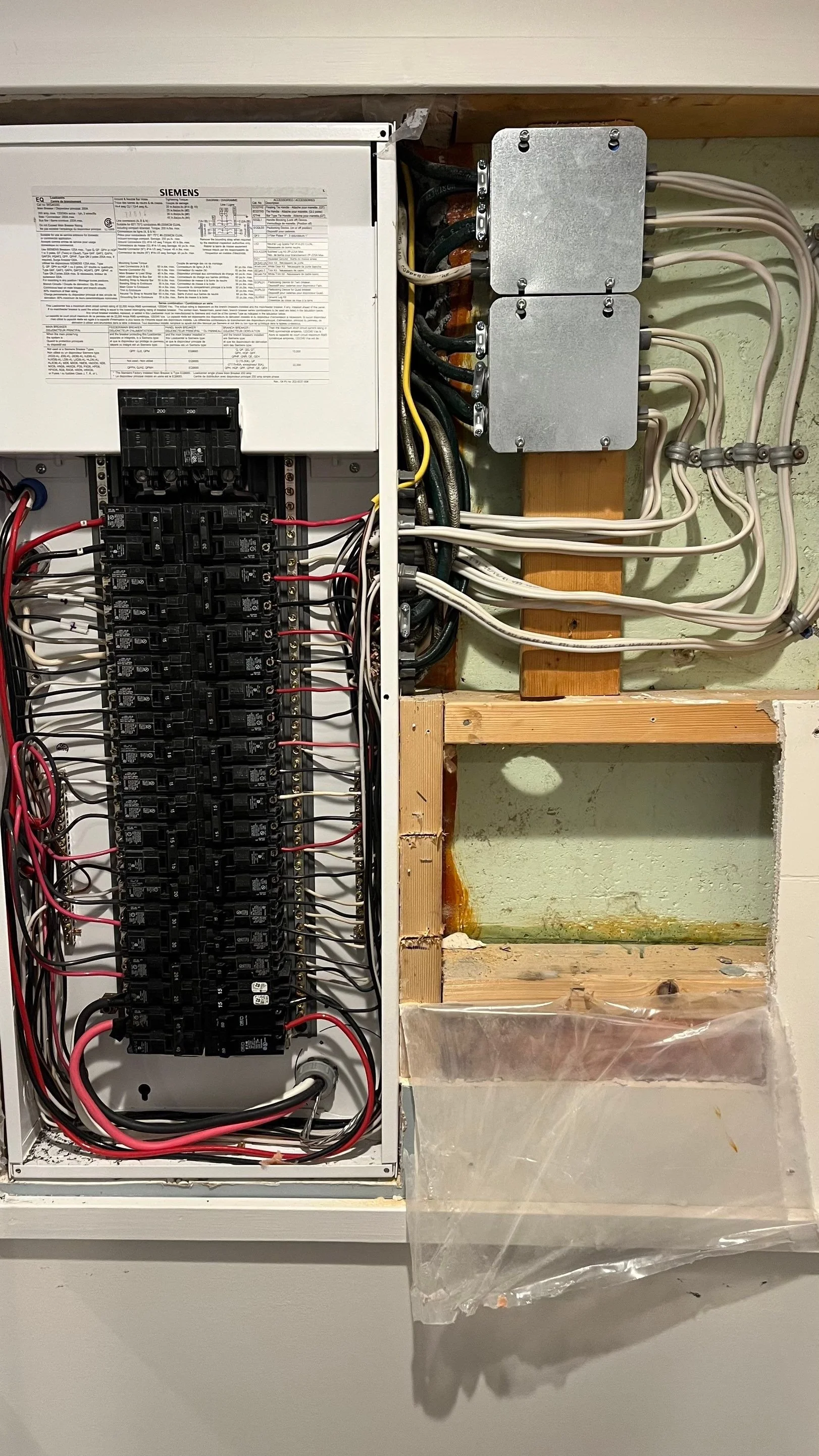

![Full Siemens 200 amp panel with tandem breakers installed to free up space for a 2-pole 100A sauna feeder breaker]()
Every position in this Siemens 200A panel was occupied. We consolidated existing 15A circuits onto tandem breakers to open the two adjacent slots needed for the 100A feeder.
Why Victoria Homeowners Trust Grifflyn Electric
Lifetime warranty on workmanship — our labour is guaranteed for as long as you own your home
Up to 5-year warranty on parts
Technical Safety BC certified — Licence #LEL0209496
Red Seal certified electricians on every job
$5 million liability coverage
BBB A+ accredited
Top-rated electrical company on Google
Straightforward, upfront pricing — the first electrical company in greater Victoria to publish a standardized pricing catalogue, so you're never surprised
Full, expanded service department built to get you in fast
We answer the phone, 24/7
Sauna wiring across Greater Victoria
Grifflyn Electric installs sauna circuits across the Greater Victoria area, including Victoria, Saanich, Oak Bay, Esquimalt, View Royal, Colwood, Langford, Sidney, and Metchosin. We work in both newer homes and older Victoria properties where panel space and capacity need a closer look before adding a heavy load.
Sauna wiring questions, answered
-
Sauna circuit installation starts from $2,183 + GST for a 40A circuit run under 100 feet. The final cost depends on your heater's amperage, the run length, available panel capacity, and whether the sauna is indoor or outdoor. We give you a firm written quote after an on-site assessment.
-
Most residential electric sauna heaters run on a dedicated 240V circuit, commonly 30 to 60 amps depending on the heater's kilowatt rating. We size the breaker and wire to your specific heater spec and the length of the run so it operates safely at full output.
-
Yes. Sauna circuits require GFCI protection for shock safety in a hot, humid environment. We install it correctly so it protects the circuit without nuisance tripping.
-
Yes. We wire both indoor and outdoor saunas. Outdoor and detached installations use weatherproof methods, proper conduit, and equipment rated for a wet location, with the disconnect placed for safe servicing.
-
Sometimes. A sauna is a heavy load, and if your panel is full or your service is near capacity, especially with other new loads like a heat pump or EV charger, you may need a panel replacement or service upgrade first. We run a load calculation and tell you before any work starts.
-
Yes. It is licensed electrical work that requires a permit and a final inspection. We pull the permit, complete the install to code, and arrange the inspection.
